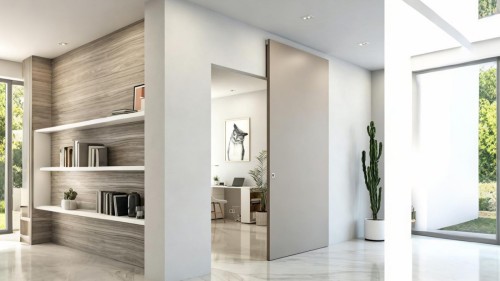

Custom Interior Ghost Door With Concealed Sliding Hardware

Item specifics

Product Series: Custom Ghost Door Series

Door Type: Interior Concealed Sliding Door

Operation Type: Space-Saving Sliding Operation

Customization: Door Size / Panel Finish / Hardware Series

Production Time: 15-25 Days

Sample: Available

Project Service: OEM / ODM / Custom Project Support

Review

Description

Ghost Door Hardware Specifications

Specification
Description	YB01 1st Generation	YB05 3rd Generation	YB09 4th Generation
Door Weight	≤ 80 kg per leaf
Door Width	800–1500 mm
Door Width Formula	Opening width + 267 mm	Opening width + 160 mm
Door Height Formula	Opening height + 70 mm
Required Headroom	120 mm
Door-to-Wall Gap	10 mm
Door Thickness	35–50 mm
Floor Guide Center to Wall	10 mm + door thickness ÷ 2

Product Features Click To Expand

Patent & Design	Patented and exclusively designed as China's first ghost door hardware system
Concealed Track	Fully concealed track design keeps the track and fittings out of sight
Overlap & Damper	—	Minimal overlap with a quick-release damper for easier maintenance
Anti-Derailment	Anti-derailment system helps prevent the sliding door from disengaging
Safety Latch	Safety latch	Dual-safety latch
Wall Compensation	Three-dimensional height adjustment compensates for uneven walls and helps prevent rubbing		Height-adjustable; does not compensate for rubbing caused by uneven walls
Floor Roller Finish	Transparent floor roller leaves no visible marks
Floor Adaptation	Elastic floor roller adapts to uneven floors and reduces sliding noise	Enlarged floor roller improves clearance	—
Spring Bracket	—	Two spring sets provide improved adaptation to uneven floors
Compatible Doors	Single wood, aluminium-framed glass, stainless-steel, and aluminium-wood doors; double-opening configurations are also available

Click any product image to enlarge it. Shared specifications and features are merged across all models. Model-specific differences are highlighted in orange. Swipe horizontally on mobile to compare the products.

Ghost Door Hardware Components

Components

A ghost door needs several hardware components — a top guide, a bottom mechanism, a ceiling plate, and a floor plate.

Browse core component groups

close

Top hardware

The top hardware is mounted into the top of the door. It uses a pinhole connection in which a fixed pin engages with the ceiling plate when the door is installed.

Two top hardware options are available: Regular and Cable Grommet. The Cable Grommet version enables easy wiring through the door for lighting or electronic security.

close

Bottom hardware

The bottom hardware is the main movement mechanism of the ghost door and is fitted inside the lower edge of the door, making it virtually invisible. It supports ghost doors weighing up to 500 kg.

Depending on the model, the bottom mechanism can provide hold positions, self-closing, damper control, latch control, 30° speed control, and free swing. Its placement determines the spatial impact of the ghost door. In addition to conventional side placement, the hardware is suitable for 360-degree rotating panels or walls.

close

Ceiling plate

The ceiling plate is fitted in the ceiling, where the pin of the top hardware seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.

close

Floor plate

Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens' hinges with floor heating. Two longer, shortenable floor plate pins of 30 mm are included with the square floor plate designs.

There are various floor plates available for System M+. The standard floor plate is available in four designs: brushed stainless steel (Series 420) and PVD black in a round and a square version. Also available is floor plate Flush, which can be integrated into thresholds and into interior floors. The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.

Paint-Free Ghost Door | Micro Inlay Wood Door Series

What is a paint-free ghost door? It is a concealed sliding interior wood door that hides its track, rollers, and guides to create a clean floating appearance. This micro inlay series combines paint-free wood door panels with CNC-milled decorative strips for apartments, hotels, villas, and custom residential or commercial projects.

Ghost Door Features

Modern grey ghost door with concealed sliding hardware

Paint-Free Ghost Door with Micro Inlay Wood Panel

A paint-free ghost door conceals the sliding track, rollers, and guide while its micro inlay wood panel delivers refined line detail, a flush appearance, and a clean modern finish for custom interior projects.

Ghost Door Glass Color Customization

Choose the glass color, transparency, privacy level, surface effect, and coordination with concealed sliding hardware for custom ghost door projects.

Glass color affects daylight, privacy, reflection, and the visual depth of a ghost door. Review the selected glass together with the frame finish, panel size, door-leaf weight, and YB01, YB05, or YB09 concealed hardware set before production.

Clear Glass
